90-MXBN90-A0UAYZ
Novi proizvod
6 - 10 radnih dana

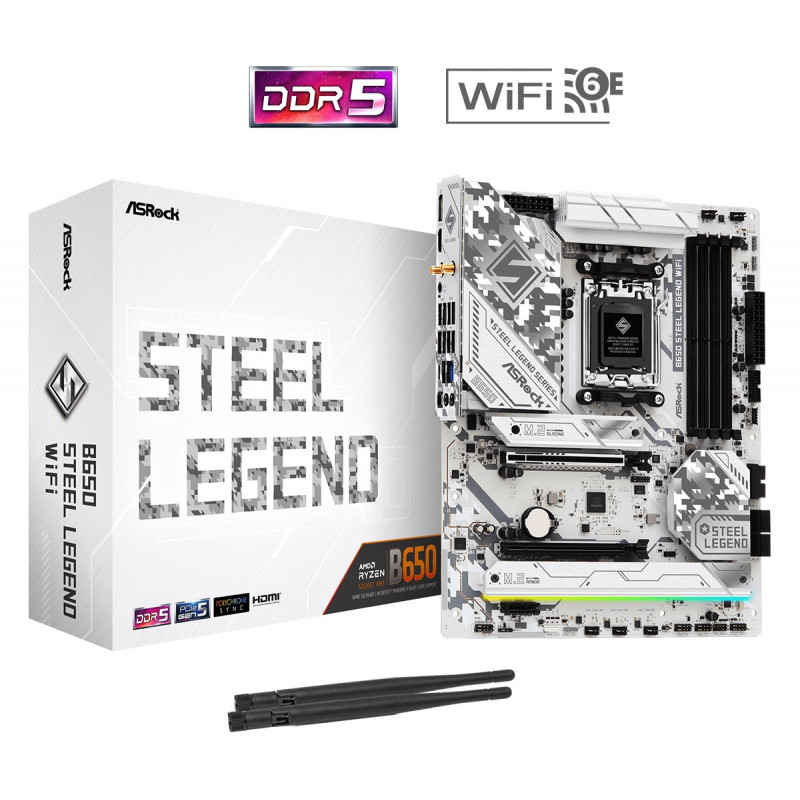

The ASRock B650 STEEL LEGEND WIFI is based on the AMD B650 chipset and supports AMD processors for socket AM5
Količina: 1 raspoloživ (kod dobavljača)
Type | Mainboard | ||
EAN | 4710483944598 | ||
Manufacturer no. | 90-MXBN90-A0UAYZ | ||
base | AM5 | ||
Max. supported CPUs | 1 | ||
operating system | Support | Windows 10 ready, Windows 11 ready | |
processor | Supported models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) | |
Chipset | AMD B650 | ||
Slots | PCIe x16 | 2x (davon: 1x PCIe x16, 1x PCIe x4) | |
PCIe x1 | 1 | ||
Thunderbolt AddIn Header | 1 | ||
BIOS | 256Mb AMI UEFI Legal BIOS | ||
Form factor | ATX | ||
use | PC | ||
power adapter | ATX12V (24-Pin + 2x 8-Pin) | ||
Storage | maximal | 192 GB | |
Number of bases | 4x DDR5 | ||
supported standards | DDR5-7200/ 6800/ 6400/ 6200/ 6000/ 5600/ 5200/ 4800/ 4400 Mhz | ||
channels | 2 | ||
Maximum memory ranks | 8 | ||
Connections (external) | USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 | |
USB-A 3.2 Gen 2 (10 Gbit/s) | 1 | ||
USB-A 3.2 Gen 1 (5 Gbit/s) | 4 | ||
A notice: | The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1. |
||
USB-A 2.0 | 4 | ||
HDMI | 1 | ||
DisplayPort-Out | 1 | ||
Microphone | 1 | ||
Line-Out | 1 | ||
S/PDIF out (optical) | 1 | ||
RJ-45 | 1 | ||
Bluetooth | And | ||
WLAN | And | ||
Connections (internal) | HOURS | 4 | |
M.2 | 3 | ||
M.2-Module Key | M | ||
M.2 WLAN | 1 | ||
M.2 interface | PCIe | ||
M.2 Long | 30 - 80 mm | ||
RGB LED Header | 1 | ||
addressable RGB LED Header | 3 | ||
USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 | ||
4-pin PWM fan | 6 | ||
Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 2 | |
USB 2.0 | 4 | ||
TPM | And | ||
RGB Standard | RGB LED | ||
SATA-Controller | AMD B650 | ||
ASMedia ASM1061 | |||
directly usable RAID levels | 0, 1, 10 | ||
USB-Controller | AMD B650 | ||
Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. | ||
Sound | Realtek ALC897 | ||
AND | Dragon RTL8125BG 2.5GbE LAN | ||
Wi-Fi 6E Module | |||
Features | CrossFireX | ||
Further information | In order to support the latest processor cores, a BIOS update may be required. | ||
Dimensions | Width: 244mm x Height: 305mm |
