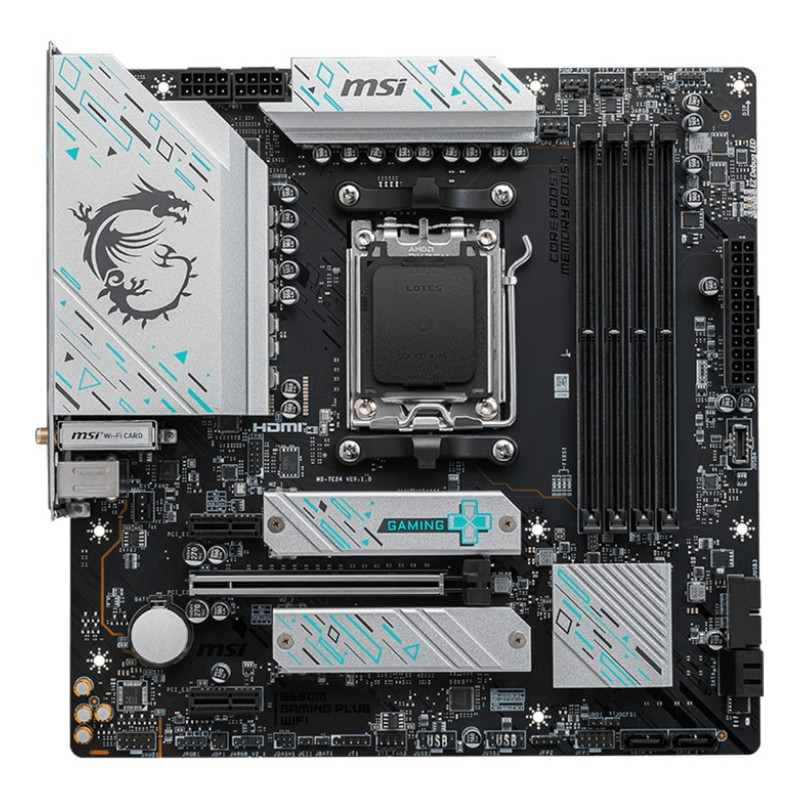

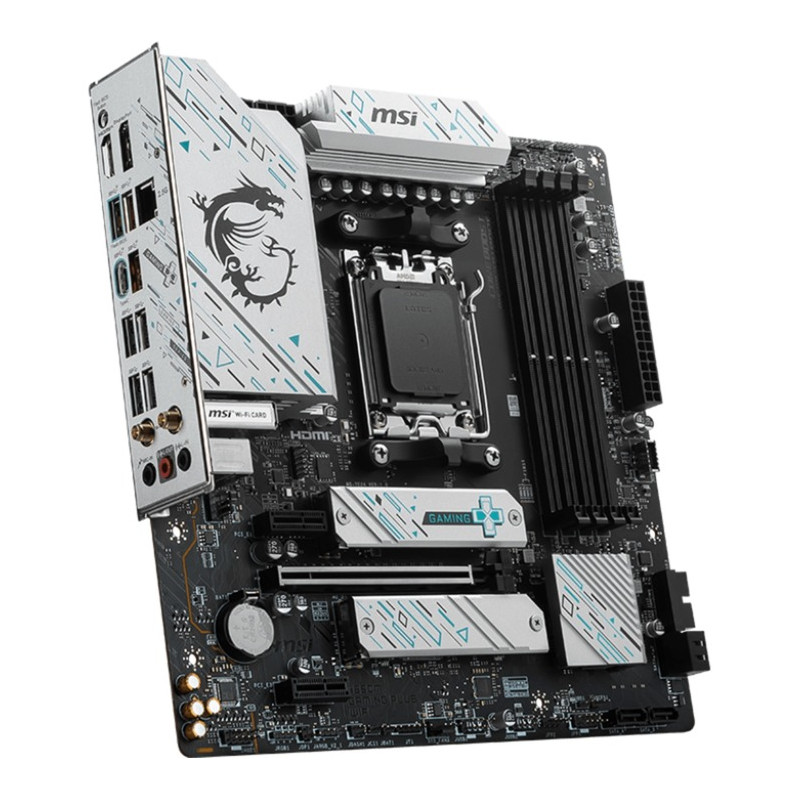

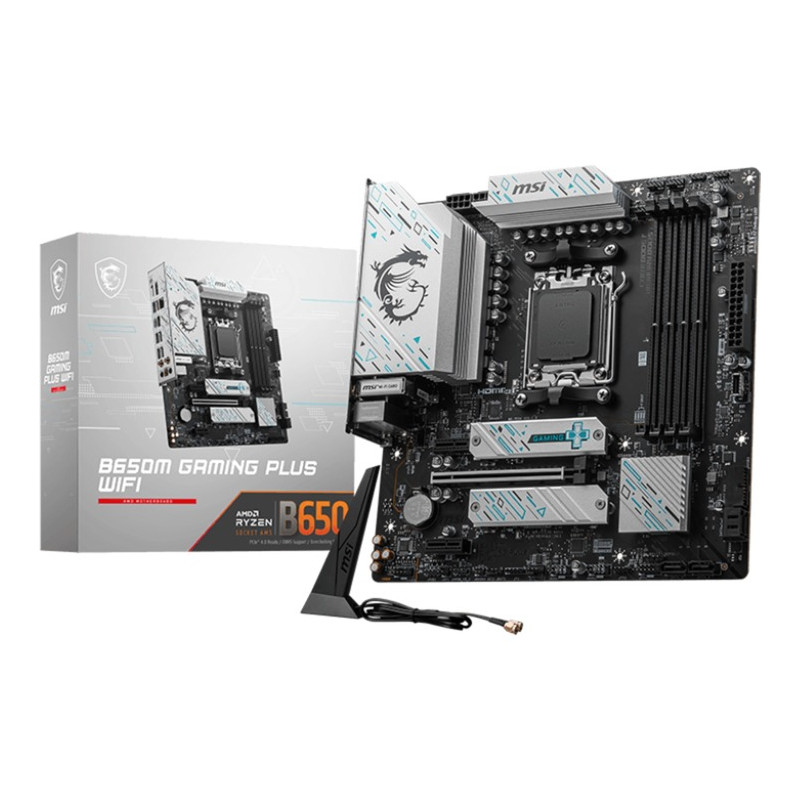

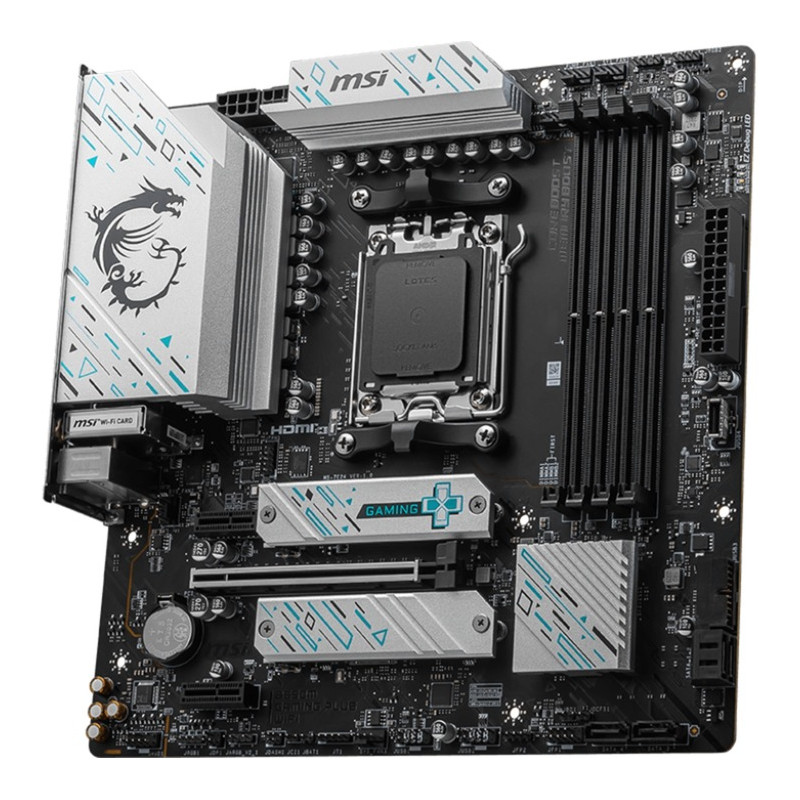

MSI B650M GAMING PLUS WIFI
7E24-001R
Novi proizvod
The MSI B650M GAMING PLUS WIFI is based on the AMD B650 chipset and supports AMD processors for socket AM5
Ovaj proizvod je rasprodan
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Više informacija
Details
| Type | Mainboard | ||
| Color | black silver | ||
| EAN | 4711377180955 | ||
| Manufacturer no. | 7E24-001R | ||
| base | AM5 | ||
| Max. supported CPUs | 1 | ||
| operating system | Support | Windows 10 ready, Windows 11 ready | |
| processor | Supported models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) | |
| Chipset | AMD B650 | ||
| Slots | PCIe x16 | 1x (of which: 1x PCIe x16) | |
| PCIe x1 | 2 | ||
| BIOS | 256Mb (32MB) SPI | ||
| EFI-BIOS | And | ||
| Form factor | µATX | ||
| use | PC | ||
| power adapter | ATX12V (24-Pin + 2x 8-Pin) | ||
| Storage | maximal | 256 GB | |
| Number of bases | 4x DDR5 | ||
| supported standards | DDR5-7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 | ||
| channels | 2 | ||
| Maximum memory ranks | 8 | ||

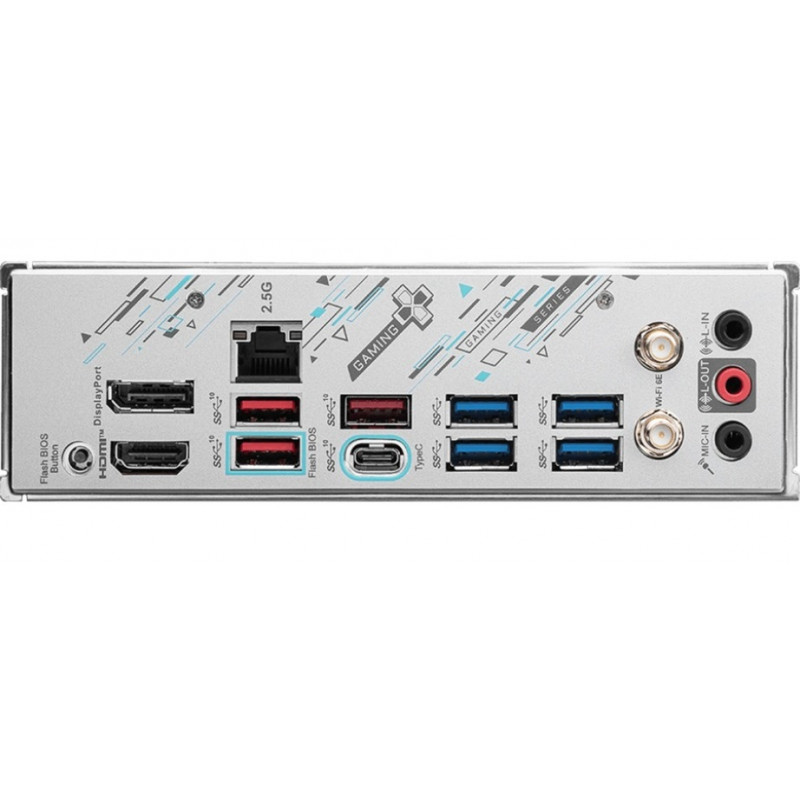

| Connections (external) | USB-C 3.2 Gen 2 (10 Gbit/s) | 1 | |
| USB-A 3.2 Gen 2 (10 Gbit/s) | 3 | ||
| USB-A 3.2 Gen 1 (5 Gbit/s) | 4 | ||
| A notice: | The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the previous designations USB 3.1 Gen 2 or USB 3.1. |
||
| HDMI | 1 | ||
| DisplayPort-Out | 1 | ||
| Microphone | 1 | ||
| Line-In | 1 | ||
| Line-Out | 1 | ||
| RJ-45 | 1 | ||
| Bluetooth | And | ||
| WLAN | And | ||
| Connections (internal) | HOURS | 4 | |
| M.2 | 2 | ||
| M.2-Module Key | M | ||
| M.2 interface | PCIe | ||
| M.2 Long | 80 mm | ||
| RGB LED Header | 2 | ||
| addressable RGB LED Header | 2 | ||
| USB-C 3.2 Gen 2 (10 Gbit/s) | 1 | ||
| 4-pin PWM fan | 5 | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 2 | |
| USB 2.0 | 4 | ||
| TPM | And | ||
| SATA-Controller | AMD B650 | ||
| directly usable RAID levels | 0, 1, 10 | ||
| USB-Controller | AMD B650 | ||
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. | ||
| Sound | Realtek ALC897 | ||
| AND | Realtek RTL8125 2.5 GbE | ||
| AMD WIFI 6E + Bluetooth 5.3 | |||
| Further information | To support the latest processor cores, a BIOS update may be required. | ||
| Dimensions | Width: 244mm x Height: 244mm | ||
