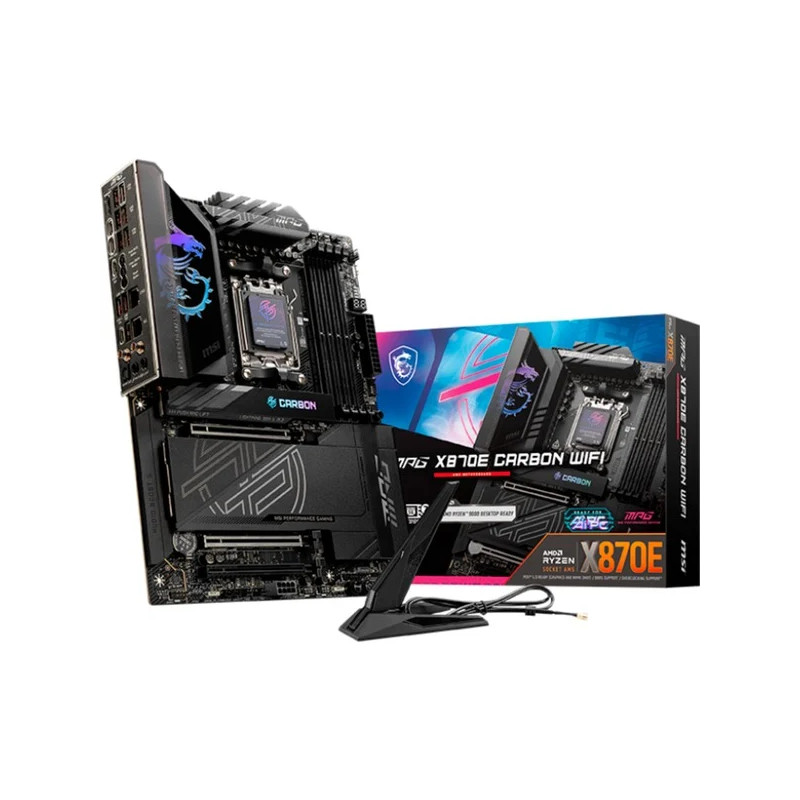

MSI MPG X870E CARBON WIFI
7E49-001R
Novi proizvod
6 - 10 radnih dana
The MSI MPG X870E CARBON WIFI is based on the AMD X870E chipset and supports AMD processors for the AM5 socket
Količina: 36 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Utor za procesor | Utor AM5 |
Više informacija
Details
| Type | Mainboard | ||
| EAN | 4711377253536 | ||
| Manufacturer no. | 7E49-001R | ||
| Base | AM5 | ||
| Max. supported CPUs | 1 | ||
| Operating system | Support | Windows 11 ready | |
| Processor | Supported models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxx (Phoenix), Ryzen 5 8xxx (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9x9x (Granite Ridge), Ryzen 7xxx (Raphael), Ryzen 7xxx (Raphael), 7xxx | |
| Chipset | AMD X870E | ||
| Slots | PCIe x16 | 3x (thereof: 1x PCIe x16, 2x PCIe x4) | |
| Thunderbolt AddIn Header | 1 | ||
| Form factor | ATX | ||
| Use | PC | ||
| Power supply | ATX12V (24-pin + 2x 8-pin) | ||
| Memory | maximum | 256 GB | |
| Number of plinths | 4x DDR5 | ||
| Supported standards | DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/6000(OC)/6000(OC)/ 5800(OC)/ 5600(JEDEC)/5400(JEDEC) | ||
| Channels | 2 | ||
| Maximum memory storage space | 8th | ||

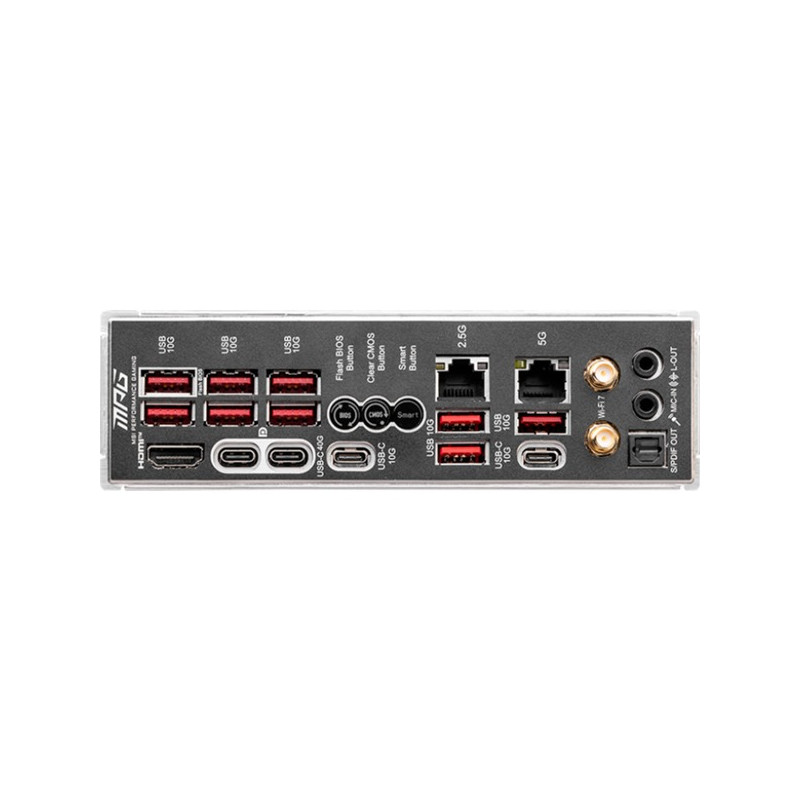

| Connections (external) | USB-C 3.2 Gen 2 (10 Gbit/s) | 2 | |
| USB-A 3.2 Gen 2 (10 Gbit/s) | 9 9 | ||
| USB4 | 2 | ||
| HDMI | 1 | ||
| Microphone | 1 | ||
| Line-In | 1 | ||
| S/PDIF-Out (optical) | 1 | ||
| RJ-45 | 2 | ||
| Bluetooth | Yes | ||
| Wi-Fi | Yes | ||
| Connections (internal) | SATA | 4 | |
| M.2 | 4 | ||
| M.2 Module Key | M | ||
| M.2 interface | PCIe | ||
| M.2 length | 60 - 110 mm | ||
| RGB LED Header | 1 | ||
| addressable RGB LED Header | 3 | ||
| USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 | ||
| 4-pole PWM fan | 8th | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 4 | |
| USB 2.0 | 4 | ||
| TPM | Yes | ||
| RGB standard | Mystic Light | ||
| SATA controller | AMD X870 | ||
| directly usable RAID level | 0, 1, 10 | ||
| USB controller | AMD X870 | ||
| Onboard graphics | The graphic connections of the motherboard can only be used when using a CPU with an integrated graphic chip. | ||
| Sound | Realtek® ALC4080 | ||
| LAN | Realtek® 8126-CG 5 GbEthernet | ||
| Realtek® 8125 2.5G | |||
| Wi-Fi 7 + Bluetooth 5.4 | |||
| Features | 2x USB4 DisplayPort Video outputs | Support for DisplayPort 1.4 and HDR. | ||
| Further information | To support the latest processor cores, a BIOS update may be required. | ||
| Accessories | available | 2x SATA cable, EZ M.2 Clip, version M.2 clip remover, EZ WiFi antenna, 1 to 3 EZ Conn cable, 1 to 2 RGB extension, ARGB extension, EZ front panel cable | |
WEEE number 54978142
