90-MXBDK0-A0UAYZ
Novi proizvod
10 - 12 radnih dana

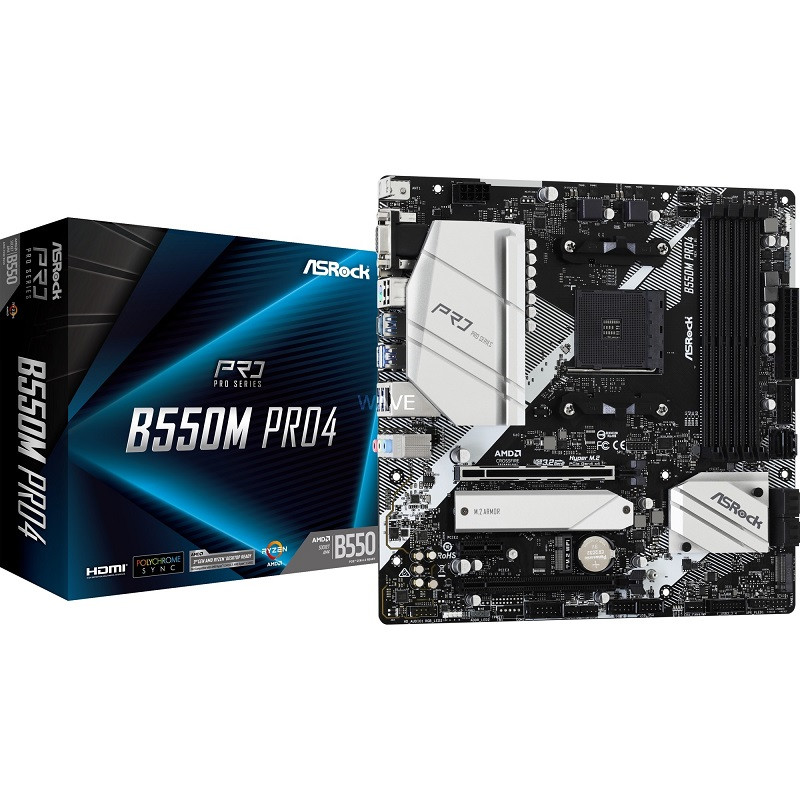

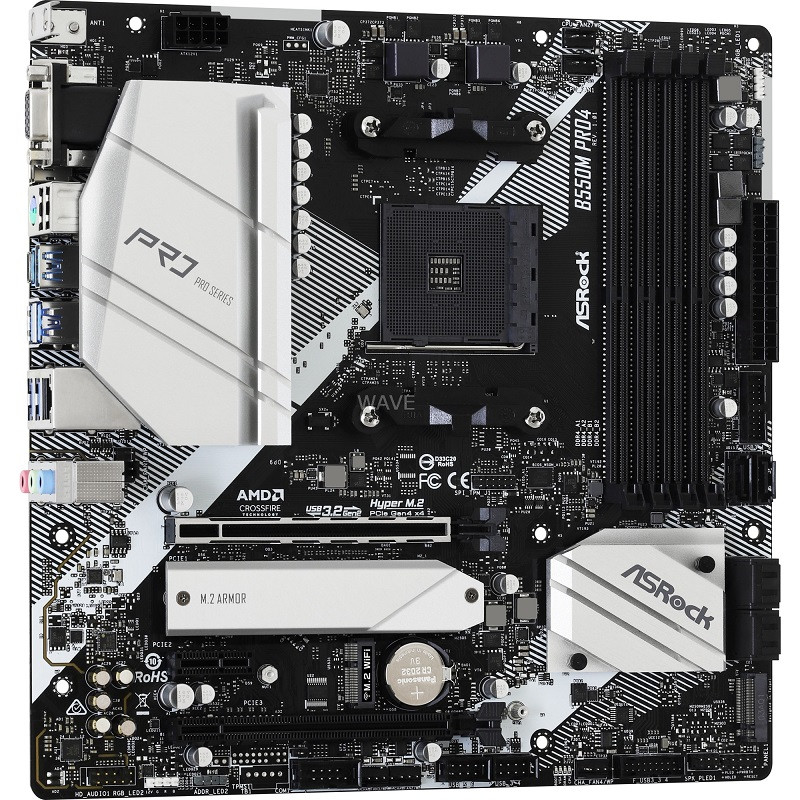

The ASRock B550M Pro4 is based on the AMD B550 chipset and supports AMD processors for the AM4 socket.
Količina: 29 raspoloživa (kod dobavljača)
Utor za procesor | Priključnice AM4 |
Type | Motherboard | ||
EAN | 4710483931598 | ||
Manufacturer No. | 90-MXBDK0-A0UAYZ | ||
base | AT 4 | ||
Max. Supported CPUs | 1 | ||
operating system | support | Windows 10 ready | |
processor | Supported models | 3rd generation AMD AM4 processors. | |
Chipset | AMD B550 | ||
Slots | PCIe x16 | 2nd | |
PCIe x1 | 1 | ||
BIOS | 256 MBit AMI UEFI BIOS | ||
Form factor | µATX | ||
use | PC | ||
power adapter | ATX12V (24-pin + 8-pin) | ||
Storage | maximum | 128 GB | |
Number of sockets | 4x DDR4 | ||
supported storage type | SDRAM-DDR4 | ||
supported standards | DDR4-4533 (OC) / 4466 (OC) / 4400 (OC) / 4333 (OC) / 4266 (OC) / 4200 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC ) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3200/2933/2667/2400/2133 MHz | ||
channels | 2nd | ||
Maximum storage ranks | 8th | ||
ECC is supported | Yes | ||
Memory controller in CPU | Yes | ||
Maximum data density | 8192 Mbit | ||
Connections (external) | Mouse / keyboard combo (PS / 2) | 1 | |
USB-C 3.2 Gen 2 (10 Gbit / s) | 1 | ||
USB-A 3.2 Gen 2 (10 Gbit / s) | 1 | ||
USB-A 3.2 Gen 1 (5 Gbit / s) | 4th | ||
The name USB 3.2 Gen 1 corresponds to the earlier names USB 3.1 Gen 1 or USB 3.0. | |||
The name USB 3.2 Gen 2 corresponds to the previous names USB 3.1 Gen 2 or USB 3.1. | |||
USB-A 2.0 | 2nd | ||
VGA | 1 | ||
HDMI | 1 | ||
microphone | 1 | ||
Line-in | 1 | ||
Line-out | 1 | ||
RJ-45 | 1 | ||
Connections (internal) | SATA | 6 | |
M.2 | 2nd | ||
M.2 module key | M | ||
M.2 WiFi | 1 | ||
M.2 interface | PCIe | ||
M.2 length | 42 - 110 mm | ||
RGB LED header | 2nd | ||
addressable RGB LED header | 2nd | ||
4-pin PWM fan | 6 | ||
Connections (optional) | USB 3.2 Gen 1 (5 GbIt / s) | 4th | |
USB 2.0 | 4th | ||
Serial | 1 | ||
TPM | Yes | ||
RGB standard | RGB LED | ||
SATA controller | AMD B550 | ||
directly usable RAID level | 0, 1, 10 | ||
USB controller | AMD B550 | ||
Onboard graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip | ||
Sound | Realtek ALC1220 | ||
LAN | Realtek RTL8111H | ||
Features | CrossFireX | ||
Further information | A BIOS update may be required to support the latest processor cores. | ||

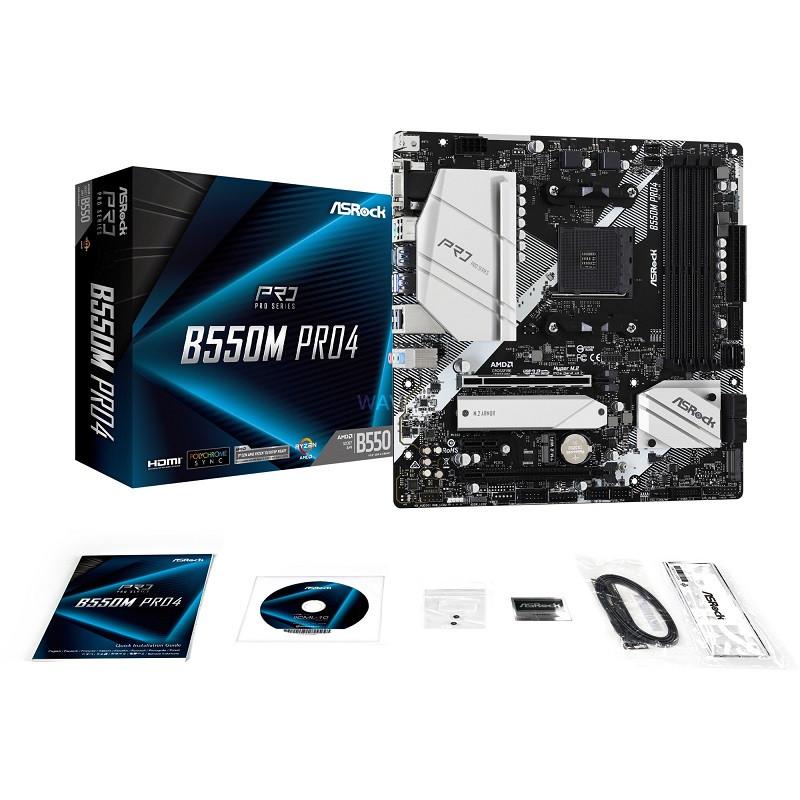

equipment | available | 2x SATA cables, 3x screws for M.2 socket, 1x I / O shield, quick start guide, support CD. |
