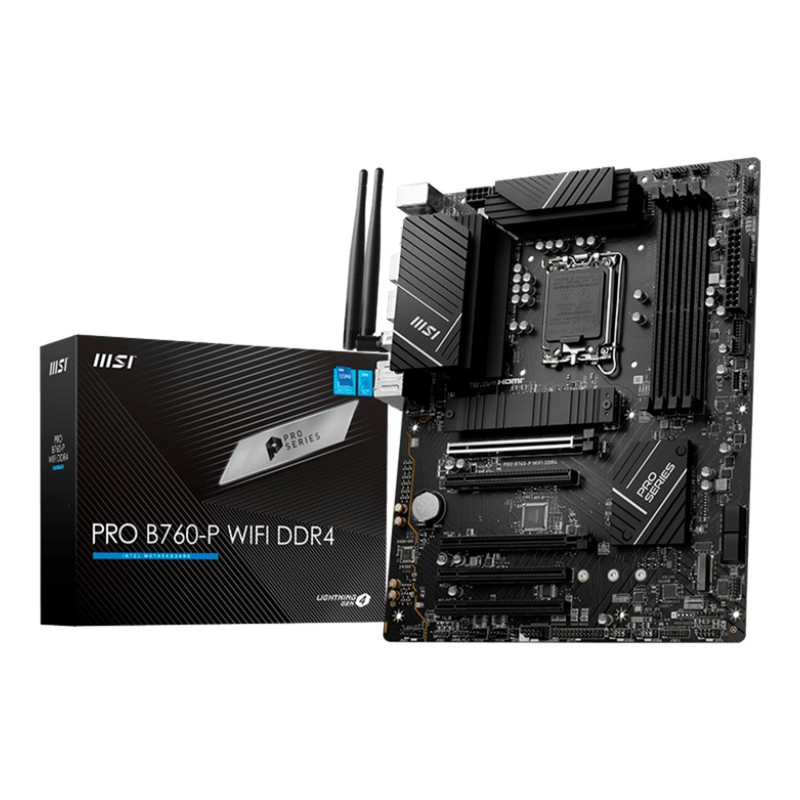

MSI PRO B760-P WIFI DDR4
7D98-001R
Novi proizvod
10 - 12 radnih dana
The MSI PRO B760-P WIFI DDR4 motherboard is based on the Intel® B760 chipset and supports Intel® processors for socket 1700 of the 13th and 12th generation. It has four DDR4 DIMM slots in dual-channel operation for up to 128 GB of RAM.
Količina: 12 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Utor za procesor | LGA 1700 |
Više informacija
| Type | Mainboard | ||
| EAN | 4711377028363 | ||
| Manufacturer no. | 7D98-001R | ||
| base | 1700 | ||
| Max supported CPUs | 1 | ||
| processor | Supported Models | Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i9 13xxxKS (Raptor Lake) | |
| chipset | Intel® B760 | ||
| slots | PCIe x16 | 5x (davon: 1x PCIe x16, 1x PCIe x4, 3x PCIe x1) | |
| BIOS | 256 Mb flash UEFI AMI BIOS | ||
| form factor | ATX | ||
| use | PC | ||
| power adapter | ATX12V (24-Pin + 8-Pin + 4-Pin) | ||
| Storage | maximal | 128 GB | |
| number of sockets | 4x DDR4 | ||
| supported storage type | SDRAM-DDR4 | ||
| supported standards | DDR4-5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC) )/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC) )/ 2133(JEDEC) | ||
| channels | 2 | ||
| Maximum memory ranks | 8 | ||
| Memory controller in CPU | And | ||
| Connections (external) | Mouse/Keyboard Combo (PS/2) | 1 | |
| USB-A 2.0 | 4 | ||
| HDMI | 1 | ||
| DisplayPort-Out | 1 | ||
| Microphone | 1 | ||
| Line-In | 1 | ||
| Line-Out | 3 | ||
| S/PDIF out (optical) | 1 | ||
| RJ-45 | 1 | ||
| Bluetooth | And | ||
| WLAN | And | ||
| Connections (internal) | HOURS | 4 | |
| M.2 | 2 | ||
| M.2-Module Key | M | ||
| M.2 interface | SATA, PCIe | ||
| M.2 Long | 42 - 110 mm | ||
| RGB LED Header | 1 | ||
| addressable RGB LED Header | 2 | ||
| 4-pin PWM fan | 7 | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 2 | |
| USB 2.0 | 4 | ||
| TPM | And | ||
| SATA-Controller | Intel® B760 | ||
| directly usable RAID levels | 0, 1, 10, 5 | ||
| USB-Controller | Intel® B760 | ||
| Onboard Graphics | The graphics ports on the mainboard can only be used when using a CPU with an integrated graphics chip. | ||
| Sound | Realtek ALC897 | ||
| AND | Realtek 8125BG 2.5Gbps LAN | ||
| Intel® Wi-Fi 6E | |||
| Further information | A BIOS update may be required to support the latest processor cores. | ||
| Dimensions | Width: 244mm x Height: 305mm | ||
Recenzije
Trenutno nema recenzija korisnika.
