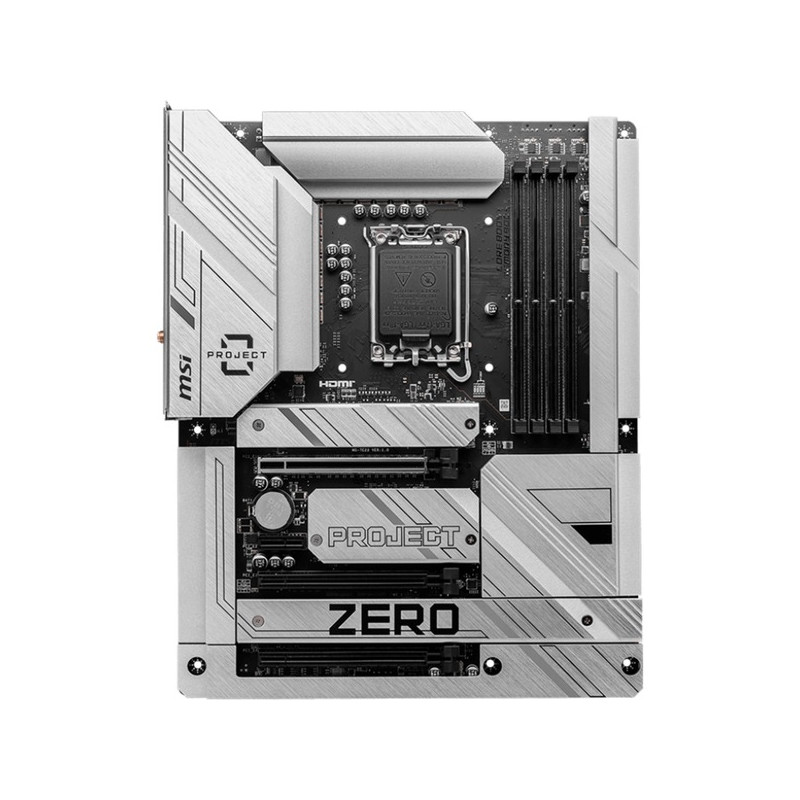

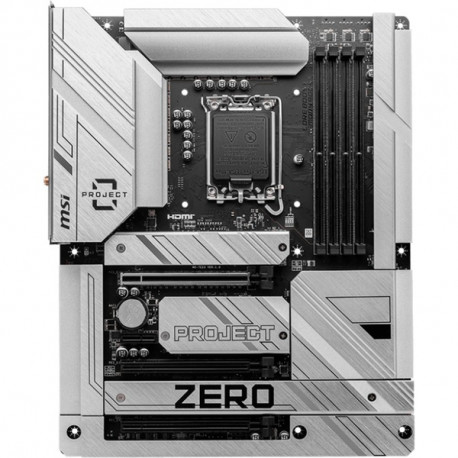

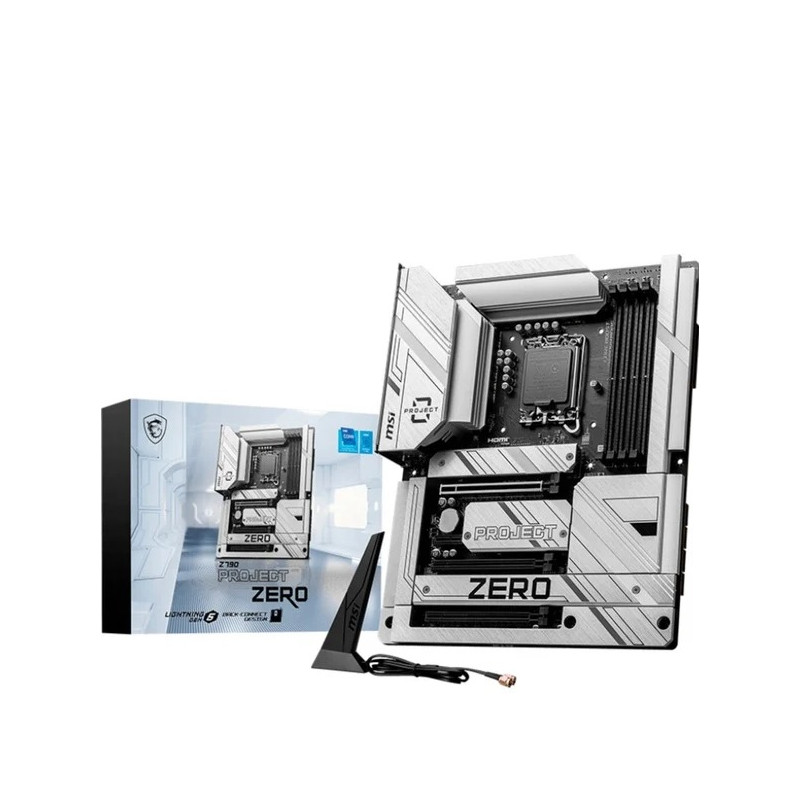

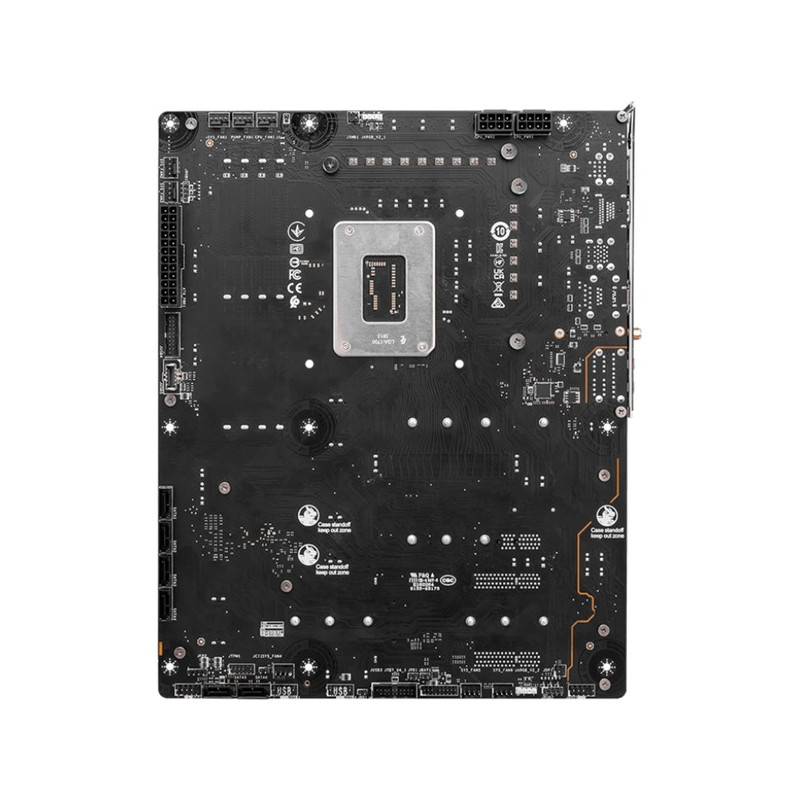

MSI Z790 PROJECT ZERO, Mainboard
7E23-001R
Novi proizvod
6 - 10 radnih dana
MSI Z790 PROJECT ZERO motherboard is based on the Intel® Z790 chipset and supports Intel® processors for the Socket 1700
Količina: 1 raspoloživ (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Više informacija
Details
| Type | Mainboard | ||
| EAN | 4711377154024 | ||
| Manufacturer no. | 7E23-001R | ||
| Base | 1700 | ||
| Max. supported CPUs | 1 | ||
| Operating system | Support | Windows 10 ready, Windows 11 ready | |
| Processor | Supported models | Core i3 12xxx (Alder Lake), Core i3 12xxxD (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3xxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxxX (Raptor Lake), Core i5 13xxxF (Raptor Lake), i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxS), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxD (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxi7 13xxxD (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxxD, Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxC), Core i7 14xxxC (Raptor Lake-S), Core i7 14xxxCore i9 12xxxKF (Alder Lake), Core i9 12xxxD (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), i9Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxx (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron | |
| Chipset | Intel® Z790 | ||
| Slots | PCIe x16 | 3x (of which 1x PCIe x16, 1x PCIe x4, 1x PCIe x1) | |
| PCIe x1 | 1 | ||
| Thunderbolt AddIn Header | 1 | ||
| Form factor | ATX | ||
| Power supply | ATX12V (24-pin + 2x 8-pin) | ||
| Memory | maximum | 256 GB | |
| Number of plinths | 4x DDR5 | ||
| Supported standards | DDR5-7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) | ||
| Channels | 2 | ||
| Maximum memory storage space | 8 | ||
| Maximum data density | 8192 Mbit | ||

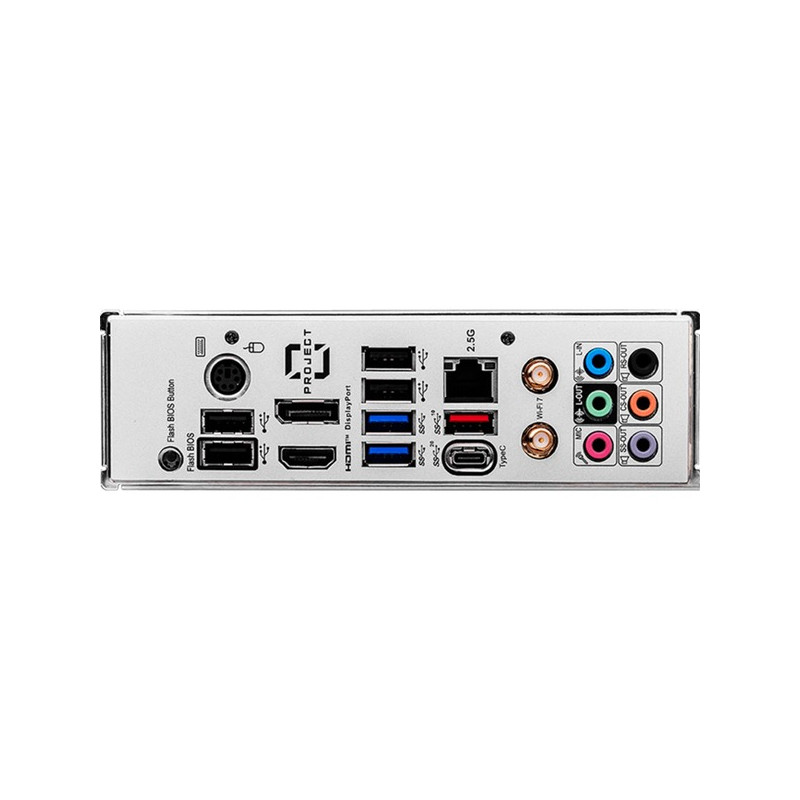

| Connections (external) | Mouse/keyboard combo (PS/2) | 1 | |
| USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 | ||
| USB-A 3.2 Gen 2 (10 Gbit/s) | 1 | ||
| USB-A 3.2 Gen 1 (5 Gbit/s) | 2 | ||
| USB-A 2.0 | 4 | ||
| HDMI | 1 | ||
| DisplayPort-Out | 1 | ||
| Connections (internal) | SATA | 6 6 | |
| M.2 | 4 | ||
| M.2 length | 42 - 110 mm | ||
| RGB LED Header | 2 | ||
| addressable RGB LED Header | 2 | ||
| USB-C 3.2 Gen 2 (10 Gbit/s) | 1 | ||
| 4-pole PWM fan | 8 | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 4 | |
| USB 2.0 | 4 | ||
| Thunderbolt | 1 | ||
| TPM | Yes | ||
| SATA controller | Intel® Z790 | ||
| directly usable RAID level | 0, 1, 10, 5 | ||
| USB controller | Intel® Z790 | ||
| Onboard graphics | The graphic connections of the motherboard can only be used when using a CPU with an integrated graphic chip. | ||
| Sound | Realtek ALC897 | ||
| LAN | Intel® 2.5 GbE LAN | ||
| Wi-Fi 7 + Bluetooth 5.4 | |||
| Further information | To support the latest processor cores, a BIOS update may be required. | ||
