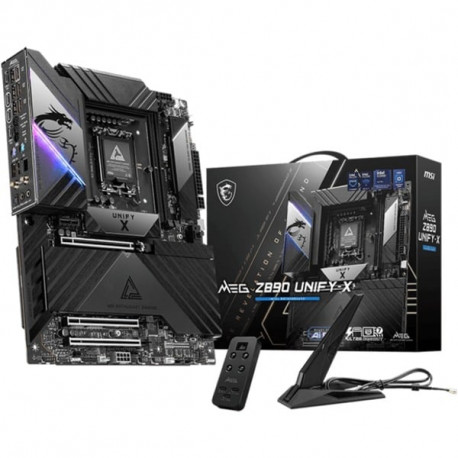

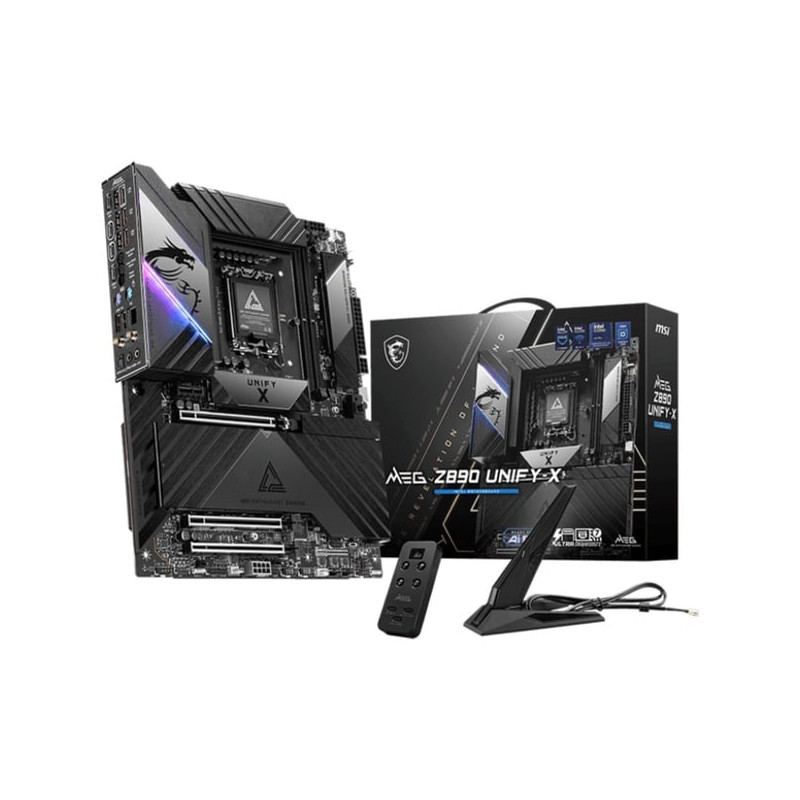

MSI MEG Z890 UNIFY-X
7E20-001R
Novi proizvod
The MSI MEG Z890 Unify-X is based on the Intel®-Z890 chipset and supports Intel® processors for the base 1851
Ovaj proizvod je rasprodan
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Utor za procesor | LGA 1851 (Socket V1) |
Više informacija
Details
| Type | Mainboard | ||
| Color | Black/gold yellow | ||
| EAN | 4711377266970 | ||
| Manufacturer no. | 7E20-001R | ||
| Base | 1851 | ||
| Max. supported CPUs | 1 | ||
| Operating system | Support | Windows 10 ready, Windows 11 ready | |
| Processor | Supported models | Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 | |
| Chipset | Intel® Z890 | ||
| Slots | PCIe x16 | 3x (thereof: 1x PCIe x16, 1x PCIe x8, 1x PCIe x4) | |
| PCIe x1 | 1 | ||
| Thunderbolt AddIn Header | 1 | ||
| Form factor | ATX | ||
| Use | PC | ||
| Power supply | ATX12V (24-pin + 2x 8-pin) | ||
| Memory | maximum | 128 GB | |
| Number of plinths | 2x DDR5 | ||
| Supported standards | DDR5 9600 (OC.) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s | ||
| Channels | 2 | ||
| Maximum memory storage space | 4 | ||
| Memory controller in CPU | Yes | ||

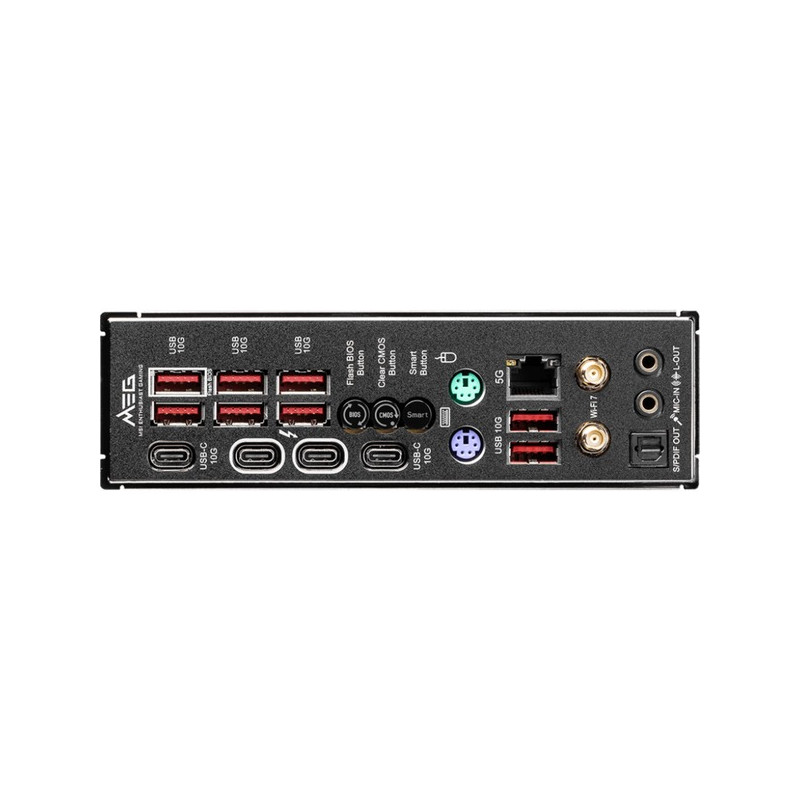

| Connections (external) | USB-C 3.2 Gen 2 (10 Gbit/s) | 2 | |
| USB-A 3.2 Gen 2 (10 Gbit/s) | 8th | ||
| Note: | The designation USB 3.2 Gen 1 corresponds to the earlier descriptions USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the earlier names USB 3.1 Gen 2 respectively. USB 3.1. |
||
| Thunderbolt | 2 x version 4 | ||
| HDMI | 1 | ||
| Line-In | 1 | ||
| Line-out | 1 | ||
| S/PDIF-Out (optical) | 1 | ||
| RJ-45 | 1 | ||
| Bluetooth | Yes | ||
| Wi-fi | Yes | ||
| Connections (internal) | SATA | 6 6 6 | |
| M.2 | 6 6 6 | ||
| M.2 Module Key | M | ||
| M.2 interface | PCIe | ||
| M.2 length | 60 - 110 mm | ||
| RGB LED Header | 1 | ||
| addressable RGB LED Header | 3 | ||
| USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 | ||
| 4-pole PWM fan | 7 | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 4 | |
| USB-C 3.2 Gen 2 (10 Gbit/s | 1 | ||
| USB 2.0 | 4 | ||
| TPM | Yes | ||
| RGB standard | Mystic Light | ||
| Sata controller | Intel® Z890 | ||
| directly usable RAID level | 0, 1, 10, 5 | ||
| USB controller | Intel® Z890 | ||
| Onboard graphics | The graphic connections of the motherboard can only be used when using a CPU with an integrated graphic chip. | ||
| Sound | Realtek® ALC4080 Codec | ||
| LAN | Intel® Killer E5000B 5GbE | ||
| Intel® KillerTM BE1750x + Bluetooth 5.4 | |||
| Features | 2x Thunderbolt 4 USB-C DisplayPort Video outputs | Support for DisplayPort 2.1 | ||
| Further information | To support the latest processor cores, a BIOS update may be required. | ||
| Accessories | available | Tuning Controller, EZ-WiFi Antenna, USB stick, 4x SATA cable, EZ Front Panel Cable, 1 to 3 EZ Conn Cable, 1 to 2 RGB extension cable, ARGB extension cable, 2x thermistor cable, EZ M.2 Clip Remover. 4x EZ M.2 Clip II, M.2 screws and spacers, quick guide | |
| Dimensions | Width: 243,84 mm x height: 304.8 mm | ||
