ASRock B860 Lightning WiFi
90-MXBR20-A0UAYZ
Novi proizvod
10 - 12 radnih dana
The ASRock B860 Lightning WiFi is based on the Intel® B860 chipset and supports Intel® processors for the socket 1851
Količina: 5 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Utor za procesor | LGA 1851 (Socket V1) |
Više informacija
Details
| Type | Mainboard | ||
| EAN | 4711581490116 | ||
| Manufacturer no. | 90-MXBR20-A0UAYZ | ||
| Base | 1851 | ||
| Max. supported CPUs | 1 | ||
| Processor | Supported models | Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 | |
| Chipset | Intel® B860 | ||
| Slots | PCIe x16 | 2x (thereof: 1x PCIe x16, 1x PCIe x2) | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | ||
| Form factor | ATX | ||
| Use | PC | ||
| Power supply | ATX12V (24-pin + 2x 8-pin) | ||
| Memory | maximum | 256 GB | |
| Number of plinths | 4x DDR5 | ||
| Supported standards | DDR5 - 8933 (OC.) / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 / 4400 | ||
| Channels | 2 | ||
| Maximum memory storage space | 8th | ||
| Memory controller in CPU | Yes | ||

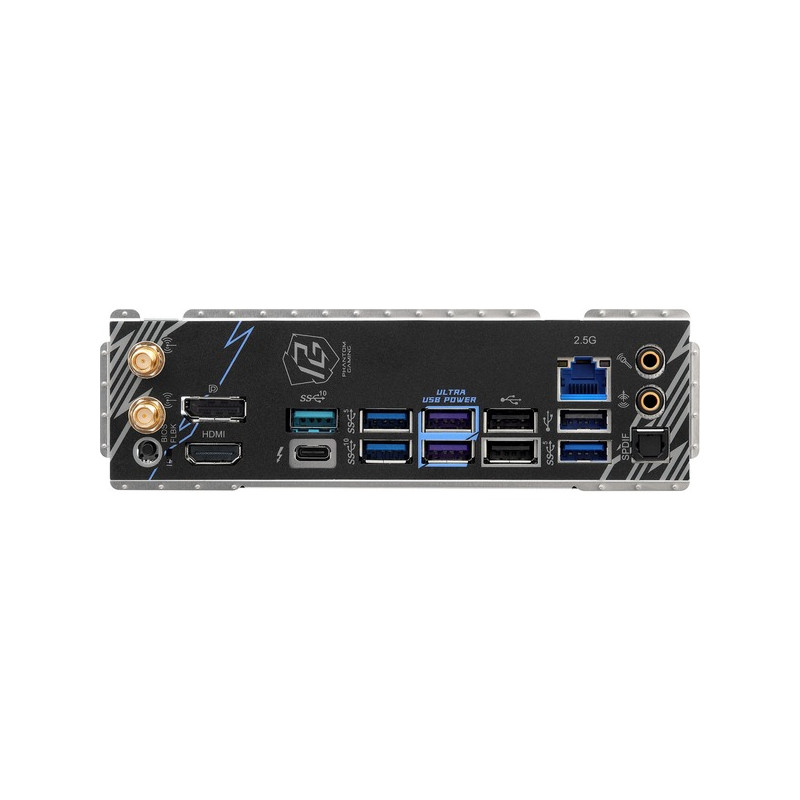

| Connections (external) | USB-A 3.2 Gen 2 (10 Gbit/s) | 2 | |
| USB-A 3.2 Gen 1 (5 Gbit/s) | 4 | ||
| Note: | The designation USB 3.2 Gen 1 corresponds to the earlier descriptions USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the earlier names USB 3.1 Gen 2 respectively. USB 3.1. |
||
| USB-A 2.0 | 3 | ||
| Thunderbolt | 1 x version 4 | ||
| HDMI | 1 | ||
| DisplayPort-Out | 1 | ||
| Microphone | 1 | ||
| Line-out | 1 | ||
| S/PDIF-Out (optical) | 1 | ||
| RJ-45 | 1 | ||
| Bluetooth | Yes | ||
| Wi-Fi | Yes | ||
| Connections (internal) | SATA | 4 | |
| M.2 | 4 | ||
| M.2 Module Key | M | ||
| M.2 interface | PCIe | ||
| M.2 length | 30 - 80 mm | ||
| RGB LED Header | 1 | ||
| addressable RGB LED Header | 3 | ||
| 4-pole PWM fan | 8th | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 4 | |
| USB-C 3.2 Gen 2x2 (20 Gbit/s | 1 | ||
| USB 2.0 | 4 | ||
| TPM | Yes | ||
| SATA controller | Intel® B860 | ||
| directly usable RAID level | 0, 1, 10, 5 | ||
| USB controller | Intel® B860 | ||
| Sound | Realtek ALC1220P 7.1 Surround Sound | ||
| LAN | Killer E3100G 2.5Gb Ethernet | ||
| 802.11axe Wi-Fi 6E | |||
| Features | 1x Thunderbolt 4 USB-C port with DisplayPort support. | ||
| Further information | To support the latest processor cores, a BIOS update may be required. | ||

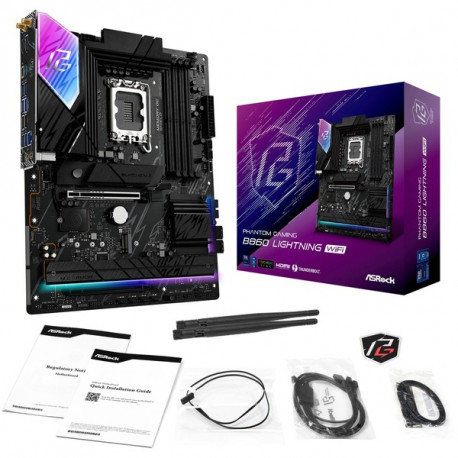

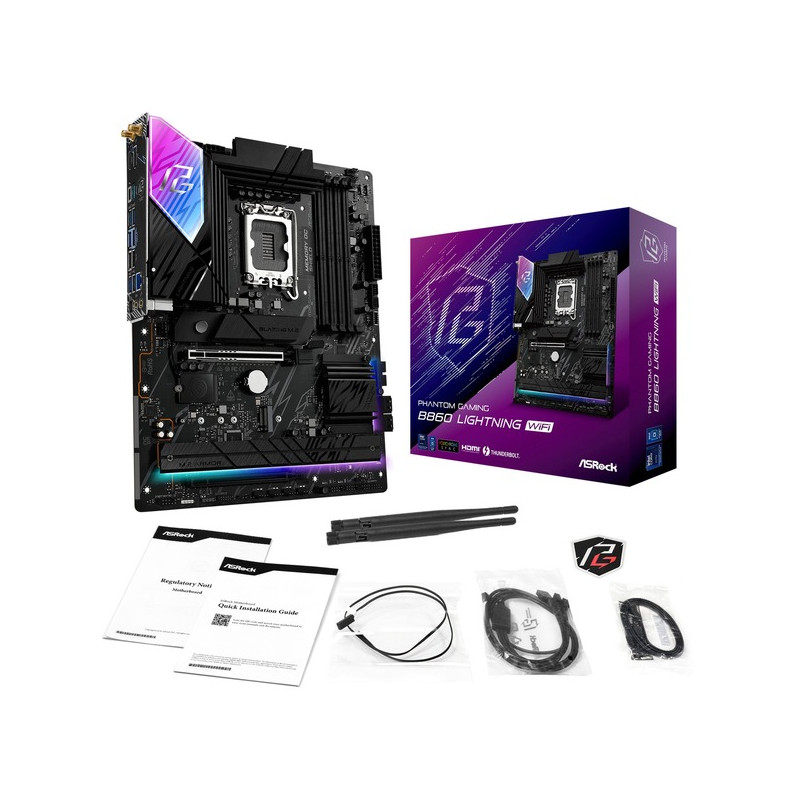

| Accessories | available | 2 x SATA cable, 2 x ASRock WiFi 2.4/5/6 GHz antenna, 1 x ARGB splitter cable, 1 x thermal cable | |
| Warning and safety instructions | Warnings: Attention: Product contains a button cell or coin battery. |
||
WEEE number 54978142
