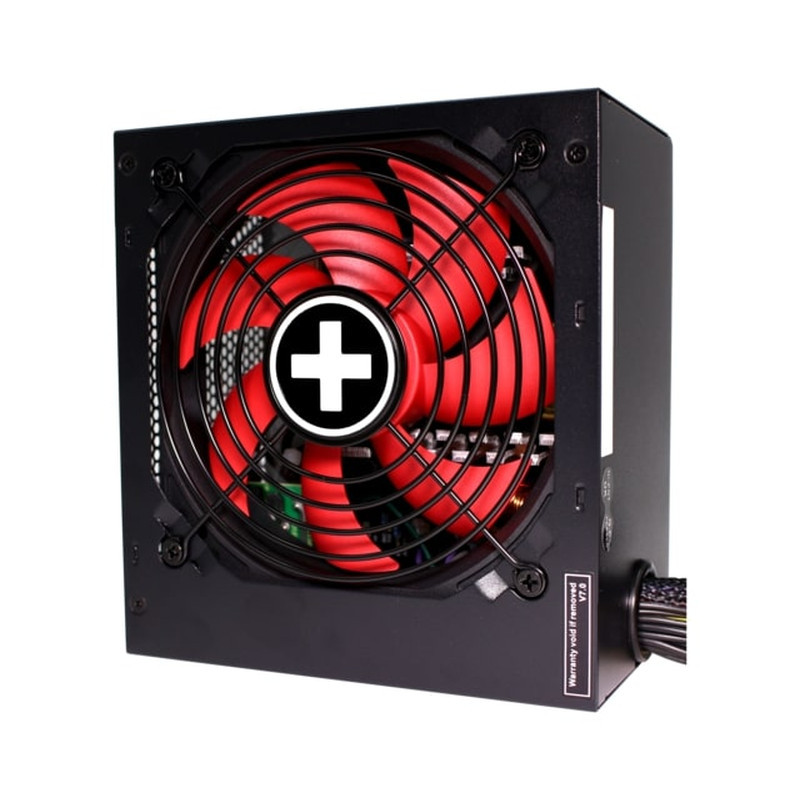

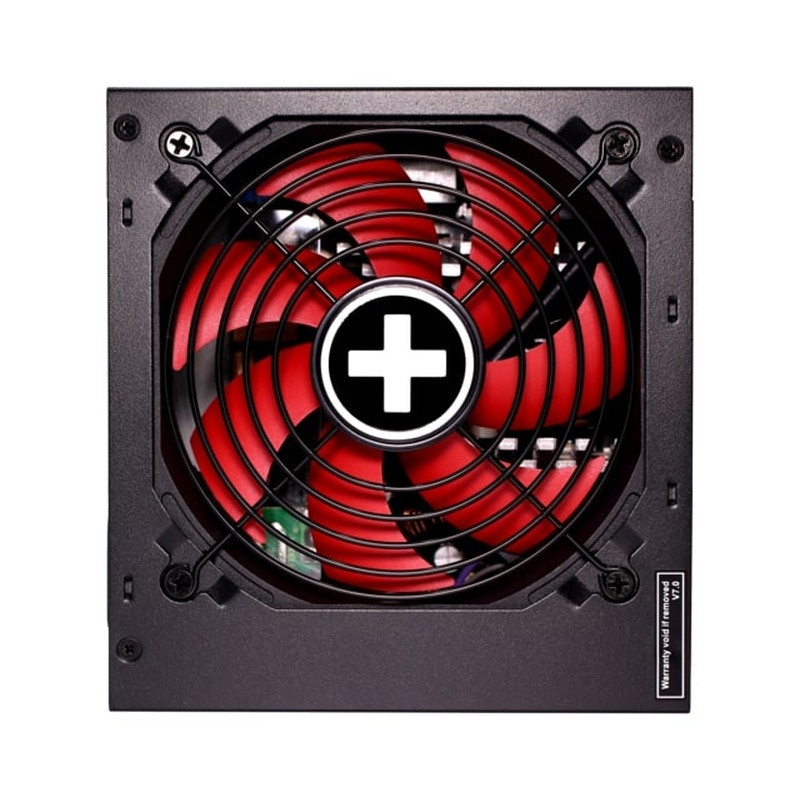

XILENCE napajanje 750W 80PLUS Bronze Gaming

XILENCE napajanje 750W 80PLUS Bronze Gaming

- The new successful Gaming series combines high performance with a low noise level and high effciency

- The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming

- Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past

- Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case

Features

- Extremely silent cooling: large 120mm fan

- semi-modular cable management

- Excellent air flow design for a better heat dissipation

- Full safety design:

* OVP (Over Voltage Protection)

* UVP (Under Voltage Protection)

* SCP (Short Circuit Protection)

* OPP (Over Power Protection)

- Low stand-by consumption

- High energy efficiency: 80+ BRONZE certified (complies with ErP2014 norm)

- Active-PFC

Technical data

- Continuous power: 750W

- Form factor ATX 12V: Version 2.52

- Voltage: 200 - 240 Vac

- Frequency: 50Hz

- Input current: 10A

- PFC: active

OUTPUT

* +3.3V: 20A

* +5V: 20A

* +12V1: 62.5A

* -12V: 0.3A

* +5Vsb: 3.0A

- Max. combined power 12V: 750W

- Max. combined power 3.3V + 5V: 100W

FAN / COOLING TECHNOLOGY

- Bearing technology: FDB

- Fan size: 120mm

PROTECTION

- OVP (over voltage protection): Yes

- UVP (under voltage protection): Yes

- SCP (short circuit protection): Yes

- OPP (over power protection): Yes

ECO / EFFICIENCY

- 80PLUS certification: Bronze

ENVIRONMENTAL DIRECTIVES

- ErP: Yes

- WEEE: Yes

- RoHS: Yes

CABLE MANAGEMENT / CONNECTORS

- Modular cable management: Yes

- Cable length to mainboard: 500mm

- Cable length to first connector: 450mm

- Maximum cable length: 750mm

- No. of cables: 7

- ATX-Motherboard (20+4-pin): 1

- P4+4 (CPU): 1

- PCI-E 6+2-pin (GPU): 2

- PATA 4-pin: 3

- SATA 15-pin (HDD, Drives): 6
