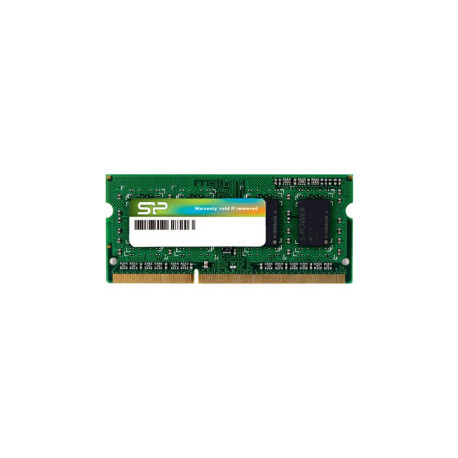

Silicon Power SO-DIMM 8GB DDR3L 1600MHz 1.35V CL11

- DDR3 functionality and operations supported
- 204-pin, small-outline dual in-line memory module
- Reset pin for improved system stability
- Nominal and dynamic on-die termination for data, strobe, and mask signals
- Adjustable data-output drive strength
- Fly-by topology
- Terminated control, command, and address bus
- Serial presence-detect EEPROM
- Gold edge contacts

Specifications
- Capacity: 8 GB
- Type: DRAM memory module
- Technology: DDR3L SDRAM
- Form Factor: SO-DIMM 204-pin
- Module Height (inch): 1.19
- Speed: 1600 MHz (PC3L-12800)
- Latency Timings: CL11 (1600)
- Data Integrity Check: Non-ECC
- Features: Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), Low Voltage, unbuffered
- Module Configuration: 1024 x 64
- Chips Organization: 512 x 8
- Voltage: 1.35 V
- Lead Plating: Gold
